sos.preview
Class FitLayout

java.lang.Object
  |
  +--sos.preview.FitLayout

All Implemented Interfaces:

java.awt.LayoutManager, ScalingLayoutManager, ScrollableLayoutManager, java.io.Serializable

public class FitLayout

extends java.lang.Object

implements ScrollableLayoutManager, ScalingLayoutManager, java.io.Serializable

A layout scheme that scales all components such that one dimension of the largest component fits in container's parent. The dimension is specified in the constructor and must be one of the following:

BoxLayout.X_AXIS	Conponent are laid out horizontally.
BoxLayout.Y_AXIS	Conponent are laid out vertically.
BoxLayout.PAGE_AXIS	Conponent are laid out horizontally if the component orientation is not horizontal and vertically otherwise.
BoxLayout.LINE_AXIS	Conponent are laid out horizontally if the component orientation is horizontal and vertically otherwise.

To get the child components to fit the given dimension, the layout may have to scale them. It scales each child component the same amount. If a child component has a smaller preferred size, it will not fill the space allotted to it. In this case, FitLayout uses the horizontal and vertical alignments to position the component within the cell.

The layout honors suggested left, right, top, and bottom margins as well as the spacing between child components. The spacing only applies for the axis being laid out.

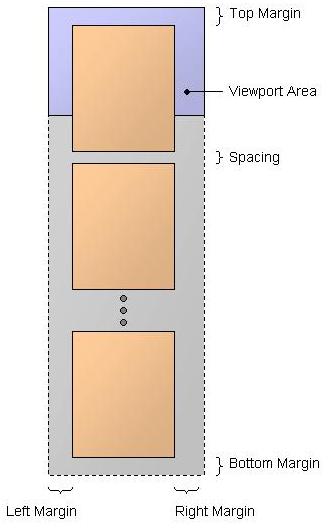

The following diagram illustrates the placement of child components along the Y_AXIS and the container's padding:

Since:

1.0

See Also:

FitAllLayout, MatrixLayout, ZoomLayout, ScalingLayoutManager, ScrollableLayoutManager

Constructor Summary

FitLayout(int axis)
Creates a FitLayout along the specified axis and with default alignments and spacing.

FitLayout(int axis, int horizontalAlignment, int verticalAlignment)
Creates a FitLayout along the specified axis, with the specified alignments, and with default spacing.

FitLayout(int axis, int spacing, int leftMargin, int rightMargin, int topMargin, int bottomMargin)
Creates a FitLayout along the specified axis, with the specified spacing, and with default alignments.

FitLayout(int axis, int horizontalAlignment, int verticalAlignment, int spacing, int leftMargin, int rightMargin, int topMargin, int bottomMargin)
Creates a FitLayout along the specified axis and with the specified alignments and spacing.

Method Summary

void	addLayoutComponent(java.lang.String name, java.awt.Component component) If the layout manager uses a per-component string, adds the specified component to the layout, associating it with the specified name.
boolean	equals(java.lang.Object obj) Indicates whether some other object is "equal to" this one.
int	getAxis() Returns the axis that this layout fits in the container.
java.awt.Dimension	getPreferredScrollableViewportSize(java.awt.Container container) Returns the specified container's preferred scrollable viewport size.
int	getScrollableBlockIncrement(java.awt.Container container, java.awt.Rectangle rectangle, int orientation, int direction) Returns the specified container's scrollable block increment.
boolean	getScrollableTracksViewportHeight(java.awt.Container container) Returns true if a viewport should always force the height of the specified container to match the height of the viewport.
boolean	getScrollableTracksViewportWidth(java.awt.Container container) Returns true if a viewport should always force the width of the specified container to match the width of the viewport.
int	getScrollableUnitIncrement(java.awt.Container container, java.awt.Rectangle rectangle, int orientation, int direction) Returns the specified container's scrollable unit increment.
int	hashCode() Returns a hash code value for the object.
void	layoutContainer(java.awt.Container container) Lays out the specified container.
java.awt.Dimension	minimumLayoutSize(java.awt.Container container) Calculates the minimum size dimensions for the specified container, given the components it contains.
java.awt.Dimension	preferredLayoutSize(java.awt.Container container) Calculates the preferred size dimensions for the specified container, given the components it contains.
double	preferredScale(java.awt.Container container) Returns the scale of the specified container's components if the container were to get its preferred size.
void	removeLayoutComponent(java.awt.Component component) Removes the specified component from the layout.
double	scaleComponents(java.awt.Container container) Lays out the container's components and returns the scale factor.

Methods inherited from class java.lang.Object

clone, finalize, getClass, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

FitLayout

public FitLayout(int axis)
          throws java.lang.IllegalArgumentException

Creates a FitLayout along the specified axis and with default alignments and spacing.

Parameters:

axis - The axis to make fit in the container. Acceptable values are BoxLayout.X_AXIS, BoxLayout.Y_AXIS, BoxLayout.PAGE_AXIS, and BoxLayout.LINE_AXIS.

Throws:

java.lang.IllegalArgumentException - if axis is not an acceptable SwingConstant

See Also:

FitLayout(int,int,int,int,int,int,int,int)

FitLayout

public FitLayout(int axis,
                 int horizontalAlignment,
                 int verticalAlignment)
          throws java.lang.IllegalArgumentException

Creates a FitLayout along the specified axis, with the specified alignments, and with default spacing.

Parameters:

axis - The axis to make fit in the container. Acceptable values are BoxLayout.X_AXIS, BoxLayout.Y_AXIS, BoxLayout.PAGE_AXIS, and BoxLayout.LINE_AXIS.

horizontalAlignment - Horizontal alignment of components that are not as wide as the widest component in the container. Acceptable values are SwingConstants.CENTER, SwingConstants.LEFT, SwingConstants.RIGHT, SwingConstants.LEADING, and SwingConstants.TRAILING.

verticalAlignment - Vertical alignment of components that are not as tall as the tallest component in the container. Acceptable values are SwingConstants.CENTER, SwingConstants.TOP, and SwingConstants.BOTTOM.

Throws:

java.lang.IllegalArgumentException - if axis, horizontalAlignment, or verticalAlignment is not an acceptable SwingConstant

See Also:

FitLayout(int,int,int,int,int,int,int,int)

FitLayout

public FitLayout(int axis,
                 int spacing,
                 int leftMargin,
                 int rightMargin,
                 int topMargin,
                 int bottomMargin)
          throws java.lang.IllegalArgumentException

Creates a FitLayout along the specified axis, with the specified spacing, and with default alignments.

Parameters:

axis - The axis to make fit in the container. Acceptable values are BoxLayout.X_AXIS, BoxLayout.Y_AXIS, BoxLayout.PAGE_AXIS, and BoxLayout.LINE_AXIS.

spacing - Spacing between components

leftMargin - the left margin

rightMargin - the right margin

topMargin - the top margin

bottomMargin - the bottom margin

Throws:

java.lang.IllegalArgumentException - if axis is not an acceptable SwingConstant; or if one of the spacing parameters is negative

See Also:

FitLayout(int,int,int,int,int,int,int,int)

FitLayout

public FitLayout(int axis,
                 int horizontalAlignment,
                 int verticalAlignment,
                 int spacing,
                 int leftMargin,
                 int rightMargin,
                 int topMargin,
                 int bottomMargin)
          throws java.lang.IllegalArgumentException

Creates a FitLayout along the specified axis and with the specified alignments and spacing.

Parameters:

axis - The axis to make fit in the container. Acceptable values are BoxLayout.X_AXIS, BoxLayout.Y_AXIS, BoxLayout.PAGE_AXIS, and BoxLayout.LINE_AXIS.

horizontalAlignment - Horizontal alignment of components that are not as wide as the widest component in the container. Acceptable values are SwingConstants.CENTER, SwingConstants.LEFT, SwingConstants.RIGHT, SwingConstants.LEADING, and SwingConstants.TRAILING.

verticalAlignment - Vertical alignment of components that are not as tall as the tallest component in the container. Acceptable values are SwingConstants.CENTER, SwingConstants.TOP, and SwingConstants.BOTTOM.

spacing - Spacing between components

leftMargin - the left margin

rightMargin - the right margin

topMargin - the top margin

bottomMargin - the bottom margin

Throws:

java.lang.IllegalArgumentException - if axis, horizontalAlignment, or verticalAlignment is not an acceptable SwingConstant; or if one of the spacing parameters is negative

Method Detail

addLayoutComponent

public void addLayoutComponent(java.lang.String name,
                               java.awt.Component component)

If the layout manager uses a per-component string, adds the specified component to the layout, associating it with the specified name.

Specified by:

addLayoutComponent in interface java.awt.LayoutManager

Parameters:

name - the string to be associated with the component

component - the component to be added

equals

public boolean equals(java.lang.Object obj)

Indicates whether some other object is "equal to" this one.

Overrides:

equals in class java.lang.Object

Parameters:

obj - the reference object with which to compare

Returns:

true if this object is the same as obj

getAxis

public int getAxis()

Returns the axis that this layout fits in the container.

Returns:

the axis that this layout fits in the container

getPreferredScrollableViewportSize

public java.awt.Dimension getPreferredScrollableViewportSize(java.awt.Container container)

Description copied from interface: ScrollableLayoutManager

Returns the specified container's preferred scrollable viewport size. The semantics are the same as javax.swing.Scrollable#getPreferredScrollableViewportSize, except the container is a parameter instead of the receiver.

Specified by:

getPreferredScrollableViewportSize in interface ScrollableLayoutManager

Parameters:

container - Container for which the preferred size is requested

Returns:

The preferred scrollable viewport size of container

hashCode

public int hashCode()

Returns a hash code value for the object.

Overrides:

hashCode in class java.lang.Object

Returns:

a hash code value for this object

preferredScale

public double preferredScale(java.awt.Container container)

Description copied from interface: ScalingLayoutManager

Returns the scale of the specified container's components if the container were to get its preferred size.

Specified by:

preferredScale in interface ScalingLayoutManager

Parameters:

container - container for which to calculate the scale

Returns:

the amount this layout manager would scale the specified container's components to achieve the preferred size

getScrollableBlockIncrement

public int getScrollableBlockIncrement(java.awt.Container container,
                                       java.awt.Rectangle rectangle,
                                       int orientation,
                                       int direction)

Description copied from interface: ScrollableLayoutManager

Returns the specified container's scrollable block increment. The semantics are the same as javax.swing.Scrollable#getScrollableBlockIncrement, except the container is a parameter instead of the receiver.

Specified by:

getScrollableBlockIncrement in interface ScrollableLayoutManager

Parameters:

container - The container that is being scrolled

rectangle - The view area visible within the viewport

orientation - The axis of the scrolling--either SwingConstants.VERTICAL or SwingConstants.HORIZONTAL

direction - A negative number to indicate scrolling left or up, or a positive number to indicate scrolling right or down

Returns:

The amount the viewport should scroll as a result of a "block" increment. It should be positive.

getScrollableTracksViewportHeight

public boolean getScrollableTracksViewportHeight(java.awt.Container container)

Description copied from interface: ScrollableLayoutManager

Returns true if a viewport should always force the height of the specified container to match the height of the viewport. The semantics are the same as javax.swing.Scrollable#getScrollableTracksViewportHeight, except the container is a parameter instead of the receiver.

Specified by:

getScrollableTracksViewportHeight in interface ScrollableLayoutManager

Parameters:

container - The container in question

Returns:

true if a viewport should keep the container's height the same height of the viewport

getScrollableTracksViewportWidth

public boolean getScrollableTracksViewportWidth(java.awt.Container container)

Description copied from interface: ScrollableLayoutManager

Returns true if a viewport should always force the width of the specified container to match the width of the viewport. The semantics are the same as javax.swing.Scrollable#getScrollableTracksViewportWidth, except the container is a parameter instead of the receiver.

Specified by:

getScrollableTracksViewportWidth in interface ScrollableLayoutManager

Parameters:

container - The container in question

Returns:

true if a viewport should keep the container's width the same width of the viewport

getScrollableUnitIncrement

public int getScrollableUnitIncrement(java.awt.Container container,
                                      java.awt.Rectangle rectangle,
                                      int orientation,
                                      int direction)

Description copied from interface: ScrollableLayoutManager

Returns the specified container's scrollable unit increment. The semantics are the same as javax.swing.Scrollable#getScrollableUnitIncrement, except the container is a parameter instead of the receiver.

Specified by:

getScrollableUnitIncrement in interface ScrollableLayoutManager

Parameters:

container - The container that is being scrolled

rectangle - The view area visible within the viewport

orientation - The axis of the scrolling--either SwingConstants.VERTICAL or SwingConstants.HORIZONTAL

direction - A negative number to indicate scrolling left or up, or a positive number to indicate scrolling right or down

Returns:

The amount the viewport should scroll as a result of a "unit" increment. It should be positive.

layoutContainer

public void layoutContainer(java.awt.Container container)

Lays out the specified container.

Specified by:

layoutContainer in interface java.awt.LayoutManager

Parameters:

container - the container to be laid out

minimumLayoutSize

public java.awt.Dimension minimumLayoutSize(java.awt.Container container)

Calculates the minimum size dimensions for the specified container, given the components it contains.

Specified by:

minimumLayoutSize in interface java.awt.LayoutManager

Parameters:

container - the container to be laid out

Returns:

the minimum size of container

preferredLayoutSize

public java.awt.Dimension preferredLayoutSize(java.awt.Container container)

Calculates the preferred size dimensions for the specified container, given the components it contains.

Specified by:

preferredLayoutSize in interface java.awt.LayoutManager

Parameters:

container - the container to be laid out

Returns:

the preferred size of container

removeLayoutComponent

public void removeLayoutComponent(java.awt.Component component)

Removes the specified component from the layout.

Specified by:

removeLayoutComponent in interface java.awt.LayoutManager

Parameters:

component - the component to be removed

scaleComponents

public double scaleComponents(java.awt.Container container)

Description copied from interface: ScalingLayoutManager

Lays out the container's components and returns the scale factor.

Specified by:

scaleComponents in interface ScalingLayoutManager

Parameters:

container - container for which to lay out its children

Returns:

the amount the specified container's children were scaled
