sos.preview
Class FitAllLayout

java.lang.Object
  |
  +--sos.preview.FitAllLayout

All Implemented Interfaces:

java.awt.LayoutManager, ScalingLayoutManager, ScrollableLayoutManager, java.io.Serializable

public class FitAllLayout

extends java.lang.Object

implements ScrollableLayoutManager, ScalingLayoutManager, java.io.Serializable

A layout scheme that scales all components such that they fit in the bounds of their container's parent.

FitAllLayout arranges the container's child components in a grid inside the container. The number of rows and columns is chosen such that it maximizes the children's sizes. It scales each child component the same amount. If a child component has a smaller preferred size, it will not fill the grid cell allotted to it. In this case, FitAllLayout uses the horizontal and vertical alignments to position the component within the cell.

FitAllLayout prefers a size that equals the container's parent's size. If the parent's size has not yet been set, the layout prefers a linear grid with each child component its preferred size.

FitAllLayout does not allow scrolling.

The layout honors suggested left, right, top, and bottom margins as well as the vertical and horizontal spacing between rows and columns.

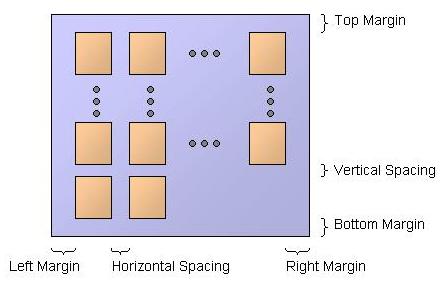

The following diagram illustrates the placement of child components and the container's padding:

FitAllLayout takes the container's component orientation into accout. The above diagram assumes a locale where the orientation is left-to-right and horizontal.

Since:

1.0

See Also:

FitLayout, MatrixLayout, ZoomLayout, ScalingLayoutManager, ScrollableLayoutManager

Constructor Summary

FitAllLayout()
Creates a default FitAllLayout.

FitAllLayout(int horizontalAlignment, int verticalAlignment)
Creates a FitAllLayout with the specified horizontal and vertical alignment for components.

FitAllLayout(int horizontalSpacing, int verticalSpacing, int minLeftMargin, int minRightMargin, int minTopMargin, int minBottomMargin)
Creates a FitAllLayout with the specified component spacing and minimum margins.

FitAllLayout(int horizontalAlignment, int verticalAlignment, int horizontalSpacing, int verticalSpacing, int minLeftMargin, int minRightMargin, int minTopMargin, int minBottomMargin)
Creates a fully specified FitAllLayout.

Method Summary

void	addLayoutComponent(java.lang.String name, java.awt.Component component) If the layout manager uses a per-component string, adds the specified component to the layout, associating it with the specified name.
boolean	equals(java.lang.Object obj) Indicates whether some other object is "equal to" this one.
java.awt.Dimension	getPreferredScrollableViewportSize(java.awt.Container container) Returns the specified container's preferred scrollable viewport size.
int	getScrollableBlockIncrement(java.awt.Container container, java.awt.Rectangle rectangle, int orientation, int direction) Returns the specified container's scrollable block increment.
boolean	getScrollableTracksViewportHeight(java.awt.Container container) Returns true if a viewport should always force the height of the specified container to match the height of the viewport.
boolean	getScrollableTracksViewportWidth(java.awt.Container container) Returns true if a viewport should always force the width of the specified container to match the width of the viewport.
int	getScrollableUnitIncrement(java.awt.Container container, java.awt.Rectangle rectangle, int orientation, int direction) Returns the specified container's scrollable unit increment.
int	hashCode() Returns a hash code value for the object.
void	layoutContainer(java.awt.Container container) Lays out the specified container.
java.awt.Dimension	minimumLayoutSize(java.awt.Container container) Calculates the minimum size dimensions for the specified container, given the components it contains.
java.awt.Dimension	preferredLayoutSize(java.awt.Container container) Calculates the preferred size dimensions for the specified container, given the components it contains.
double	preferredScale(java.awt.Container container) Returns the scale of the specified container's components if the container were to get its preferred size.
void	removeLayoutComponent(java.awt.Component component) Removes the specified component from the layout.
double	scaleComponents(java.awt.Container container) Lays out the container's components and returns the scale factor.

Methods inherited from class java.lang.Object

clone, finalize, getClass, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

FitAllLayout

public FitAllLayout()

Creates a default FitAllLayout. It establishes a horizontal alignment of CENTER, vertical alignment of CENTER, horizontal spacing of 10, vertical spacing of 10. minimum left margin of 10, minimum right margin of 10, minimum top margin of 10, and minimum bottom margin of 10.

See Also:

FitAllLayout(int,int,int,int,int,int,int,int)

FitAllLayout

public FitAllLayout(int horizontalAlignment,
                    int verticalAlignment)
             throws java.lang.IllegalArgumentException

Creates a FitAllLayout with the specified horizontal and vertical alignment for components. It establishes a horizontal spacing of 10, vertical spacing of 10. minimum left margin of 10, minimum right margin of 10, minimum top margin of 10, and minimum bottom margin of 10.

Parameters:

horizontalAlignment - Horizontal alignment of components that are not as wide as the widest component in the container. Acceptable values are SwingConstants.CENTER, SwingConstants.LEFT, SwingConstants.RIGHT, SwingConstants.LEADING, and SwingConstants.TRAILING.

verticalAlignment - Vertical alignment of components that are not as tall as the tallest component in the container. Acceptable values are SwingConstants.CENTER, SwingConstants.TOP, and SwingConstants.BOTTOM.

Throws:

java.lang.IllegalArgumentException - if horizontalAlignment or verticalAlignment are not an acceptable SwingConstant.

See Also:

FitAllLayout(int,int,int,int,int,int,int,int)

FitAllLayout

public FitAllLayout(int horizontalSpacing,
                    int verticalSpacing,
                    int minLeftMargin,
                    int minRightMargin,
                    int minTopMargin,
                    int minBottomMargin)
             throws java.lang.IllegalArgumentException

Creates a FitAllLayout with the specified component spacing and minimum margins. By default, it uses CENTER for the horizontal alignment and CENTER for the vertical alignment of components.

Parameters:

horizontalSpacing - Horizontal spacing between components

verticalSpacing - Vertical spacing between components

minLeftMargin - Minimum left margin

minRightMargin - Minimum right margin

minTopMargin - Minimum top margin

minBottomMargin - Minimum bottom margin

Throws:

java.lang.IllegalArgumentException - if any parameter is negative

See Also:

FitAllLayout(int,int,int,int,int,int,int,int)

FitAllLayout

public FitAllLayout(int horizontalAlignment,
                    int verticalAlignment,
                    int horizontalSpacing,
                    int verticalSpacing,
                    int minLeftMargin,
                    int minRightMargin,
                    int minTopMargin,
                    int minBottomMargin)
             throws java.lang.IllegalArgumentException

Creates a fully specified FitAllLayout.

Parameters:

horizontalAlignment - Horizontal alignment of components that are not as wide as the widest component in the container. Acceptable values are SwingConstants.CENTER, SwingConstants.LEFT, SwingConstants.RIGHT, SwingConstants.LEADING, and SwingConstants.TRAILING.

verticalAlignment - Vertical alignment of components that are not as tall as the tallest component in the container. Acceptable values are SwingConstants.CENTER, SwingConstants.TOP, and SwingConstants.BOTTOM.

horizontalSpacing - Horizontal spacing between components

verticalSpacing - Vertical spacing between components

minLeftMargin - Minimum left margin

minRightMargin - Minimum right margin

minTopMargin - Minimum top margin

minBottomMargin - Minimum bottom margin

Throws:

java.lang.IllegalArgumentException - if an alignment argument is not an acceptable SwingConstant; if a spacing argument is negative; or if a margin argument is negative

Method Detail

addLayoutComponent

public void addLayoutComponent(java.lang.String name,
                               java.awt.Component component)

If the layout manager uses a per-component string, adds the specified component to the layout, associating it with the specified name.

Specified by:

addLayoutComponent in interface java.awt.LayoutManager

Parameters:

name - the string to be associated with the component

component - the component to be added

equals

public boolean equals(java.lang.Object obj)

Indicates whether some other object is "equal to" this one.

Overrides:

equals in class java.lang.Object

Parameters:

obj - the reference object with which to compare

Returns:

true if this object is the same as obj

getPreferredScrollableViewportSize

public java.awt.Dimension getPreferredScrollableViewportSize(java.awt.Container container)

Description copied from interface: ScrollableLayoutManager

Returns the specified container's preferred scrollable viewport size. The semantics are the same as javax.swing.Scrollable#getPreferredScrollableViewportSize, except the container is a parameter instead of the receiver.

Specified by:

getPreferredScrollableViewportSize in interface ScrollableLayoutManager

Parameters:

container - Container for which the preferred size is requested

Returns:

The preferred scrollable viewport size of container

hashCode

public int hashCode()

Returns a hash code value for the object.

Overrides:

hashCode in class java.lang.Object

Returns:

a hash code value for this object

preferredScale

public double preferredScale(java.awt.Container container)

Description copied from interface: ScalingLayoutManager

Returns the scale of the specified container's components if the container were to get its preferred size.

Specified by:

preferredScale in interface ScalingLayoutManager

Parameters:

container - container for which to calculate the scale

Returns:

the amount this layout manager would scale the specified container's components to achieve the preferred size

getScrollableBlockIncrement

public int getScrollableBlockIncrement(java.awt.Container container,
                                       java.awt.Rectangle rectangle,
                                       int orientation,
                                       int direction)

Description copied from interface: ScrollableLayoutManager

Returns the specified container's scrollable block increment. The semantics are the same as javax.swing.Scrollable#getScrollableBlockIncrement, except the container is a parameter instead of the receiver.

Specified by:

getScrollableBlockIncrement in interface ScrollableLayoutManager

Parameters:

container - The container that is being scrolled

rectangle - The view area visible within the viewport

orientation - The axis of the scrolling--either SwingConstants.VERTICAL or SwingConstants.HORIZONTAL

direction - A negative number to indicate scrolling left or up, or a positive number to indicate scrolling right or down

Returns:

The amount the viewport should scroll as a result of a "block" increment. It should be positive.

getScrollableTracksViewportHeight

public boolean getScrollableTracksViewportHeight(java.awt.Container container)

Description copied from interface: ScrollableLayoutManager

Returns true if a viewport should always force the height of the specified container to match the height of the viewport. The semantics are the same as javax.swing.Scrollable#getScrollableTracksViewportHeight, except the container is a parameter instead of the receiver.

Specified by:

getScrollableTracksViewportHeight in interface ScrollableLayoutManager

Parameters:

container - The container in question

Returns:

true if a viewport should keep the container's height the same height of the viewport

getScrollableTracksViewportWidth

public boolean getScrollableTracksViewportWidth(java.awt.Container container)

Description copied from interface: ScrollableLayoutManager

Returns true if a viewport should always force the width of the specified container to match the width of the viewport. The semantics are the same as javax.swing.Scrollable#getScrollableTracksViewportWidth, except the container is a parameter instead of the receiver.

Specified by:

getScrollableTracksViewportWidth in interface ScrollableLayoutManager

Parameters:

container - The container in question

Returns:

true if a viewport should keep the container's width the same width of the viewport

getScrollableUnitIncrement

public int getScrollableUnitIncrement(java.awt.Container container,
                                      java.awt.Rectangle rectangle,
                                      int orientation,
                                      int direction)

Description copied from interface: ScrollableLayoutManager

Returns the specified container's scrollable unit increment. The semantics are the same as javax.swing.Scrollable#getScrollableUnitIncrement, except the container is a parameter instead of the receiver.

Specified by:

getScrollableUnitIncrement in interface ScrollableLayoutManager

Parameters:

container - The container that is being scrolled

rectangle - The view area visible within the viewport

orientation - The axis of the scrolling--either SwingConstants.VERTICAL or SwingConstants.HORIZONTAL

direction - A negative number to indicate scrolling left or up, or a positive number to indicate scrolling right or down

Returns:

The amount the viewport should scroll as a result of a "unit" increment. It should be positive.

layoutContainer

public void layoutContainer(java.awt.Container container)

Lays out the specified container.

Specified by:

layoutContainer in interface java.awt.LayoutManager

Parameters:

container - the container to be laid out

scaleComponents

public double scaleComponents(java.awt.Container container)

Description copied from interface: ScalingLayoutManager

Lays out the container's components and returns the scale factor.

Specified by:

scaleComponents in interface ScalingLayoutManager

Parameters:

container - container for which to lay out its children

Returns:

the amount the specified container's children were scaled

minimumLayoutSize

public java.awt.Dimension minimumLayoutSize(java.awt.Container container)

Calculates the minimum size dimensions for the specified container, given the components it contains.

Specified by:

minimumLayoutSize in interface java.awt.LayoutManager

Parameters:

container - the container to be laid out

Returns:

the minimum size of container

preferredLayoutSize

public java.awt.Dimension preferredLayoutSize(java.awt.Container container)

Calculates the preferred size dimensions for the specified container, given the components it contains.

Specified by:

preferredLayoutSize in interface java.awt.LayoutManager

Parameters:

container - the container to be laid out

Returns:

the preferred size of container

removeLayoutComponent

public void removeLayoutComponent(java.awt.Component component)

Removes the specified component from the layout.

Specified by:

removeLayoutComponent in interface java.awt.LayoutManager

Parameters:

component - the component to be removed
